PBR-Panel

PBR-PANEL

Strong. Durable. Easy to Install.

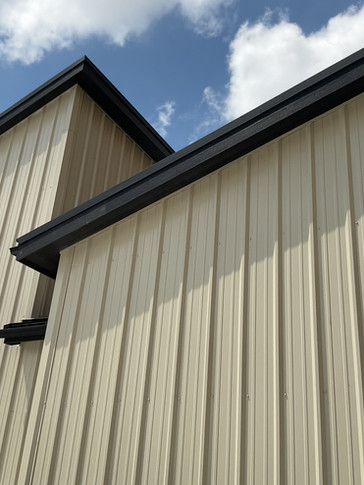

PBR-Panel is the ultimate solution for your roofing and siding needs. Perfect for commercial, industrial, agricultural, and residential applications, PBR-Panel features a robust ribbed design that ensures exceptional strength and durability. Its innovative Purlin Bearing Rib (PBR) construction enhances load-bearing capacity and guarantees a tight overlap, offering superior protection against the elements.



Crafted from high-quality steel, PBR-Panel promises long-lasting performance with minimal maintenance. Available in a variety of colors and finishes, it not only delivers structural integrity but also adds aesthetic value to any project. Choose PBR-Panel for a reliable, stylish, and easy-to-install option that stands the test of time.

PBR Panel
PBR metal roofing getting installed on roof
True Metal Supply Metal Roofing and Siding Color Chart
PBR Panel Profile Drawing

Versatile

Design

Commercial or residential, roof or wall, horizontal or vertical wall applications, PBR-Panel is extremely versatile!

Made in America

We're committed to using American steel and American coatings on our steel siding products that are

manufactured by American workers.

Easy

Install

Exposed fasteners and wide panel coverage make the PBR panels a quick and efficient install for roof and wall panel projects.

Heavy

Duty

Made from 26ga, 24ga or 22ga steel, PBR panels are remarkably strong and can be used on roof pitches as low as 0.5/12 (with solid decking).

Gallery

Technical Details

Specifications

  • Profile

    • 36" net coverage​

    • 1-1/4" rib height

    • Major ribs at 12" on center

    • Stiffening minor ribs

    • Purling bearing rib (PBR) at the side lap for strength

    • Exposed fastened for roof and wall

​

  • Materials

    • 26ga, 24ga steel​

    • .032, .040 aluminum

​

  • Coatings

    • AZ50 WeatherXL® SMP Finish

    • AAMA 2605 70% PVDF

    • AZ55 Galvalume® Mill Finish

    • Tru-Steel® HD Digital Coating

​

  • Warranty

    • Limited Lifetime Warranty

    • 50-Year Non-Painted Galvalume® Warranty

    • 20-Year Tru-Steel HD Warranty​​


  • Installation

    • 1/2:12 minimum slope requirement

    • Open framing or solid substrate

Standards

  • Materials Standards

    • Galvalume® substrate per ASTM A792 (AZ50 painted / AZ55 bare)​

    • Painted coil per ASTM A755

    • PVDF finish meets AAMA 2605

    • Aluminum per ASTM B209

    • Steel is noncombustible material


  • Applications

    • Commercial and industrial metal buildings roof and wall

    • Agricultural and post-frame buildings

    • Warehouses, shops, garages

    • Roof, wall, and interior liner
